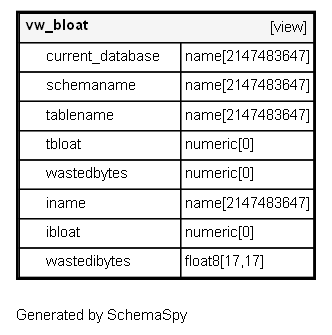

vw_bloat

Columns

Column

Type

Size

Nulls

Auto

Default

Children

Parents

Comments

current_database

name

2147483647

√

null

schemaname

name

2147483647

√

null

tablename

name

2147483647

√

null

tbloat

numeric

0

√

null

wastedbytes

numeric

0

√

null

iname

name

2147483647

√

null

ibloat

numeric

0

√

null

wastedibytes

float8

17,17

√

null

Relationships

Close relationships within degrees of separation

One

View Definition

SELECT current_database() AS current_database,
    sml.schemaname,
    sml.tablename,
    round((
        CASE
            WHEN (sml.otta = (0)::double precision) THEN (0.0)::double precision
            ELSE ((sml.relpages)::double precision / sml.otta)
        END)::numeric, 1) AS tbloat,
        CASE
            WHEN ((sml.relpages)::double precision < sml.otta) THEN (0)::numeric
            ELSE (sml.bs * ((((sml.relpages)::double precision - sml.otta))::bigint)::numeric)
        END AS wastedbytes,
    sml.iname,
    round((
        CASE
            WHEN ((sml.iotta = (0)::double precision) OR (sml.ipages = 0)) THEN (0.0)::double precision
            ELSE ((sml.ipages)::double precision / sml.iotta)
        END)::numeric, 1) AS ibloat,
        CASE
            WHEN ((sml.ipages)::double precision < sml.iotta) THEN (0)::double precision
            ELSE ((sml.bs)::double precision * ((sml.ipages)::double precision - sml.iotta))
        END AS wastedibytes
   FROM ( SELECT rs.schemaname,
            rs.tablename,
            cc.reltuples,
            cc.relpages,
            rs.bs,
            ceil(((cc.reltuples * (((((rs.datahdr + (rs.ma)::numeric) -
                CASE
                    WHEN ((rs.datahdr % (rs.ma)::numeric) = (0)::numeric) THEN (rs.ma)::numeric
                    ELSE (rs.datahdr % (rs.ma)::numeric)
                END))::double precision + rs.nullhdr2) + (4)::double precision)) / ((rs.bs)::double precision - (20)::double precision))) AS otta,
            COALESCE(c2.relname, '?'::name) AS iname,
            COALESCE(c2.reltuples, (0)::real) AS ituples,
            COALESCE(c2.relpages, 0) AS ipages,
            COALESCE(ceil(((c2.reltuples * ((rs.datahdr - (12)::numeric))::double precision) / ((rs.bs)::double precision - (20)::double precision))), (0)::double precision) AS iotta
           FROM ((((( SELECT foo.ma,
                    foo.bs,
                    foo.schemaname,
                    foo.tablename,
                    ((foo.datawidth + (((foo.hdr + foo.ma) -
                        CASE
                            WHEN ((foo.hdr % foo.ma) = 0) THEN foo.ma
                            ELSE (foo.hdr % foo.ma)
                        END))::double precision))::numeric AS datahdr,
                    (foo.maxfracsum * (((foo.nullhdr + foo.ma) -
                        CASE
                            WHEN ((foo.nullhdr % (foo.ma)::bigint) = 0) THEN (foo.ma)::bigint
                            ELSE (foo.nullhdr % (foo.ma)::bigint)
                        END))::double precision) AS nullhdr2
                   FROM ( SELECT s.schemaname,
                            s.tablename,
                            constants.hdr,
                            constants.ma,
                            constants.bs,
                            sum((((1)::double precision - s.null_frac) * (s.avg_width)::double precision)) AS datawidth,
                            max(s.null_frac) AS maxfracsum,
                            (constants.hdr + ( SELECT (1 + (count(*) / 8))
                                   FROM pg_stats s2
                                  WHERE ((s2.null_frac <> (0)::double precision) AND (s2.schemaname = s.schemaname) AND (s2.tablename = s.tablename)))) AS nullhdr
                           FROM pg_stats s,
                            ( SELECT ( SELECT (current_setting('block_size'::text))::numeric AS current_setting) AS bs,
CASE
 WHEN ("substring"(foo_1.v, 12, 3) = ANY (ARRAY['8.0'::text, '8.1'::text, '8.2'::text])) THEN 27
 ELSE 23
END AS hdr,
CASE
 WHEN (foo_1.v ~ 'mingw32'::text) THEN 8
 ELSE 4
END AS ma
                                   FROM ( SELECT version() AS v) foo_1) constants
                          GROUP BY s.schemaname, s.tablename, constants.hdr, constants.ma, constants.bs) foo) rs
             JOIN pg_class cc ON ((cc.relname = rs.tablename)))
             JOIN pg_namespace nn ON (((cc.relnamespace = nn.oid) AND (nn.nspname = rs.schemaname) AND (nn.nspname <> 'information_schema'::name))))
             LEFT JOIN pg_index i ON ((i.indrelid = cc.oid)))
             LEFT JOIN pg_class c2 ON ((c2.oid = i.indexrelid)))) sml
  ORDER BY
        CASE
            WHEN ((sml.relpages)::double precision < sml.otta) THEN (0)::numeric
            ELSE (sml.bs * ((((sml.relpages)::double precision - sml.otta))::bigint)::numeric)
        END DESC;
